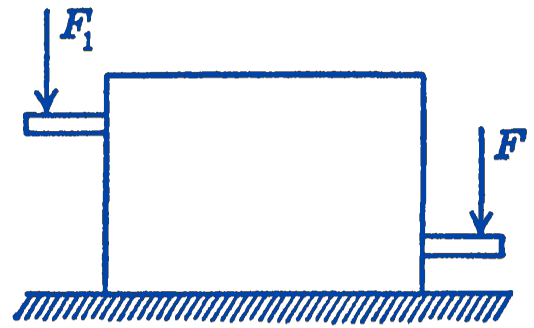

From the examples of the previous section it will be seen that the advantage of the principle of virtual displacement lies in the over-all view which it gives us of the relationships of the external forces of a system. This principle will enable us in many cases to arrive at definite conclusions concerning the external forces acting on certain structures or machines, without a complete knowledge of the details of the arrangement. Suppose, for example, that we have a box with two levers protruding, as is indicated in Fig. 1.
We apply two vertical forces to the levers as shown in Fig. 1, and we wish to know the relationship between the forces at equilibrium. If we find experimentally that a vertically downward movement of the left-hand lever of
Thus we can find the relationship between the external forces while remaining in complete ignorance as to the details of the arrangement within the box.
3.4.1 PROBLEMS

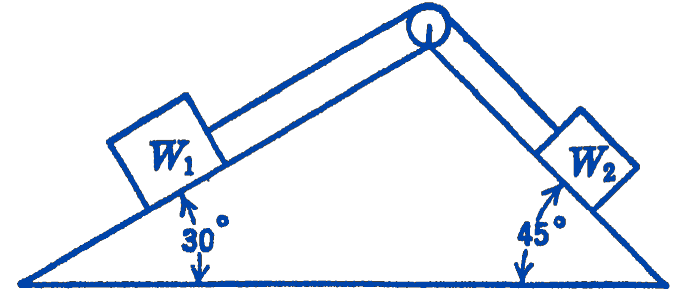

1. Two weights rest on frictionless inclined planes as shown in the figure. They are connected by a perfectly flexible, inextensible cord passing over a frictionless pulley. If
Answer
212 lb

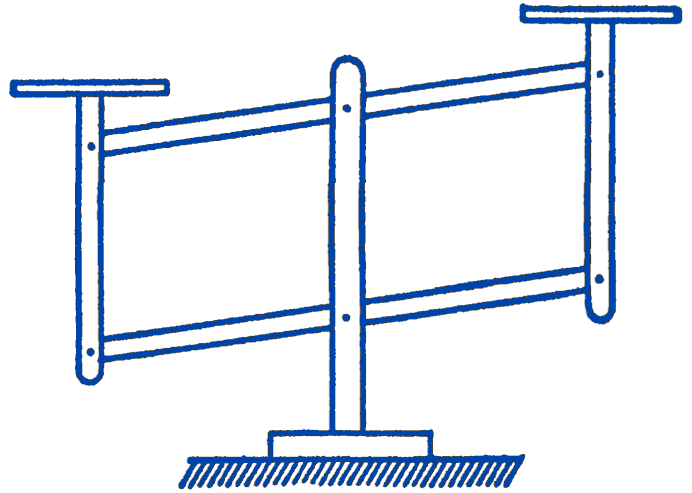

2. Show that a balance constructed as shown in the figure (Roberval’s Balance) will give correct weight independent of the position of the weights on the scale pans.
3. A platform scale is to be designed so that a weight
Answer

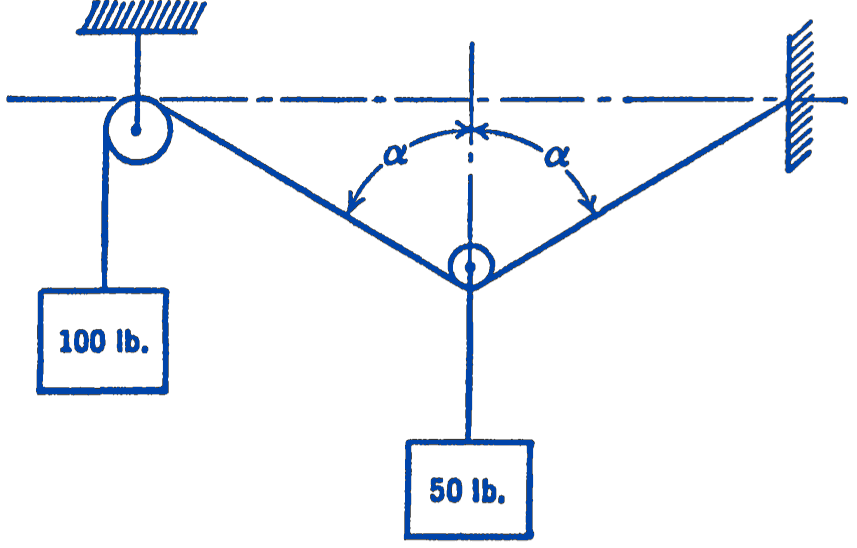

4. Two weights are suspended on inextensible cords as shown in the diagram. What is the angle
Answer

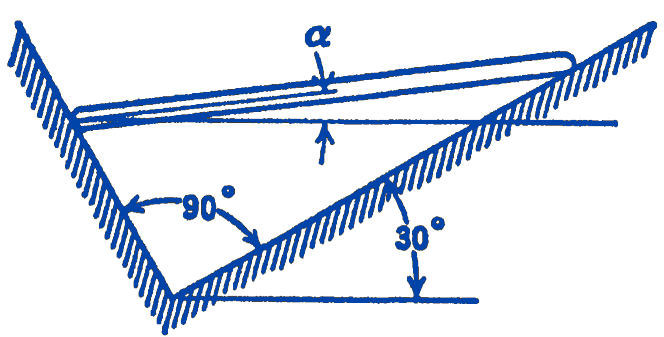

5. A uniform bar of weight
Answer

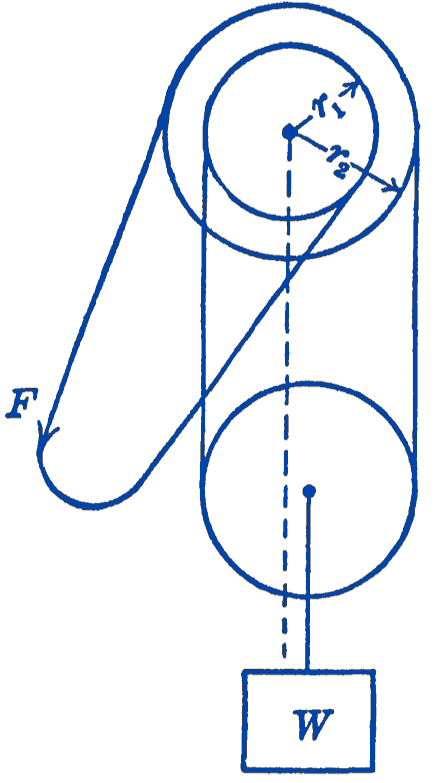

6. Find the force
